IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor

Place of Origin : Jiangsu, China

Brand Name : Dehaha

Model Number : DBZY-10A

Packaging Details : Plywood case

Supply Ability : 500 Set/Month

Price : Negotiate

Certification : CE/ISO9001

MOQ : 1set

Payment Terms : T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Delivery Time : 20 days

Product name : Screw Compressor

Condition : New

Type : Screw

Configuration : Stationary

Power Source : AC POWER

Lubrication Style : Lubricated

Mute : Yes

Voltage : 380V/50HZ/3hp

Dimension(L*W*H) : 1418*700*1500mm

Weight : 395KG

Motor power : 10hp 7.5KW IP54

Air delivery : 1.2 m3/min 42.4cfm

Pressure : 8 Bar/116Psi

Control : PLC

Cooling method : Oil cooling

Noise : less than65dB(A)

Driven method : Belt

Application : General Industry

Contact Now

DHH Factory Direct Sales 7.5kW Rotary Screw Air Compressor Compresores de tornillo 10 hp

Model: DBZY-10A
Free air delivery: 1.2 m3/min
Working pressure: 8 bar
Screw air end: Hanbell AB+ series,it has 6 pcs SKF bearings
Control: PLC
Cooling: by air
Electric motor: 10hp 7.5KW IP54 protection level
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Air tank: 260 L
Air dryer capacity: 1.35m3/min
Dimension: 1418*700*1500mm
Weight: 395kg


Pressure differentiation of integrated screw air compressor
1. High pressure series
(1) The appearance is integrated, with air tank and air dryer
(2) The pressure range is 16bar (232psi) -30bar (435psi)
(3) Divided into fixed speed and permanent magnet frequency conversion series

2. Ordinary pressure series
(1) The appearance is integrated, with air tank and air dryer
(2) The pressure range is 7bar (101.5psi) -13bar (188.5psi)
(3) Divided into fixed speed and permanent magnet frequency conversion series

Technical Parameters
Model
Capacity (m3/min)
Pressure
(Bar )
Power
(kw)

Noise
(DB)
Outlet diameter
Dimension(mm)

Weight
(kg)
Air tank
(L)
Exhaust oil content
(ppm)
DBZY-10A

0.55
1.58
7.5
65
G3/4
1418*700*1500
395
260
0.01
DBZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DBZY-20A
1.51
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DMZY-20A
1.52
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-30A
2.41
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
DCZY-30A
2.21
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor
Application Industry
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor

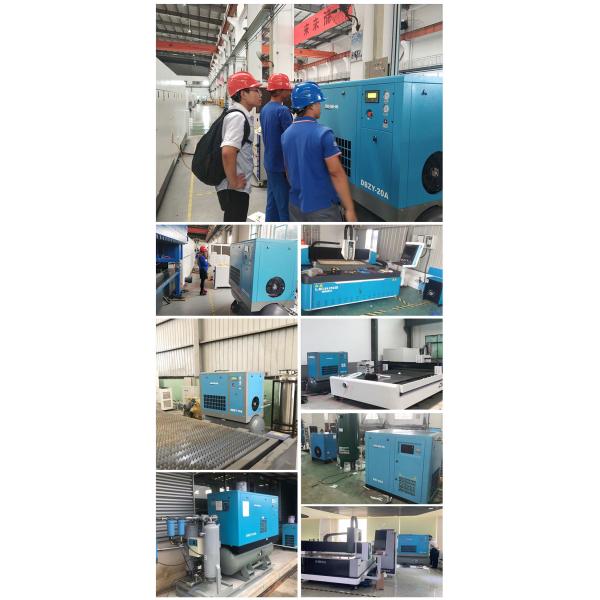

Project Case
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor
Company Profile
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor

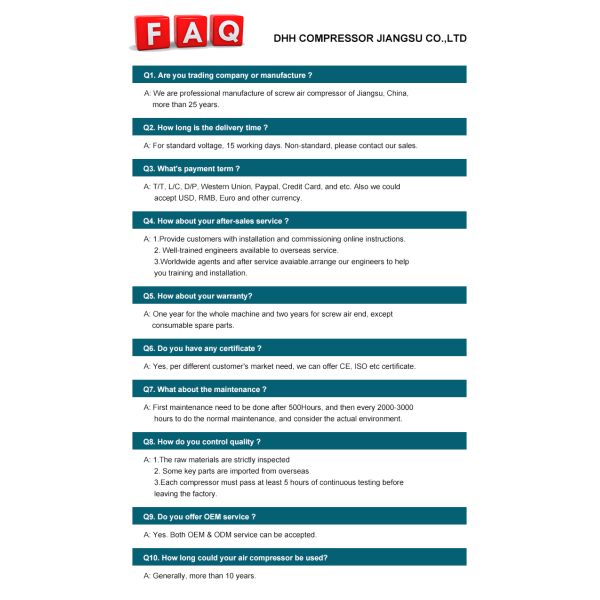

FAQ
IP54 High Pressure Screw Compressor 10hp 7.5 Kw Screw Compressor
